Grade 3 · Low-Tech Builds · Lesson 23

Paper Roller Coaster

Fold, curve, and connect paper tracks for a marble-sized passenger.

Time2–3 × 60 minutesTeamsTeams of 3–4EquipmentNo powered equipment required

Project inspiration · 3 images

See, build, and test

Use these images to understand the kind of making, details, and testing involved. They are inspiration—not designs students must copy.

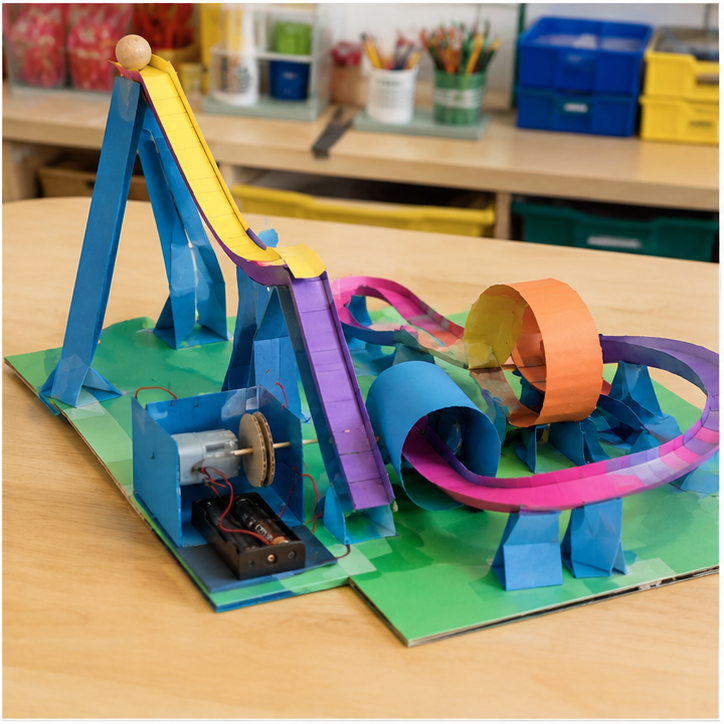

Finished student example for Paper Roller Coaster
01Finished project

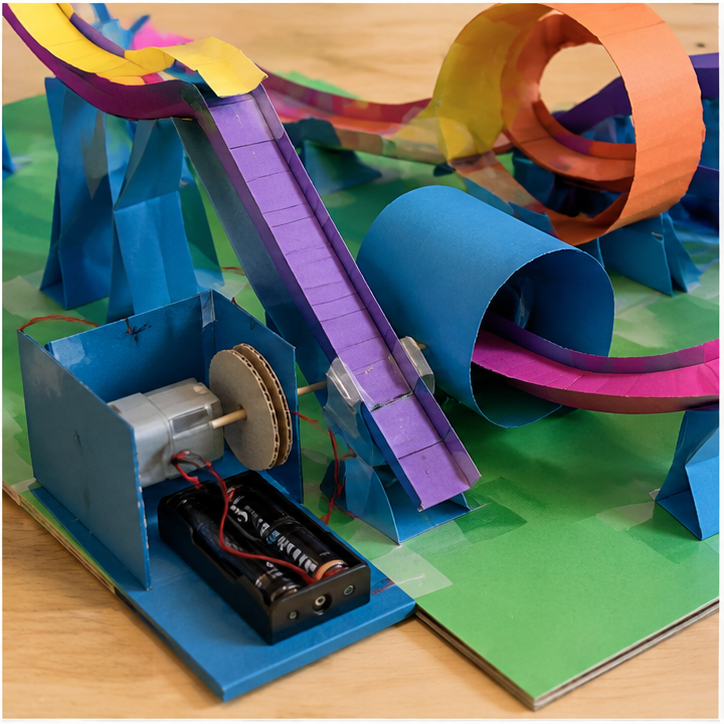

Close construction and materials view for Paper Roller Coaster
02Construction detail

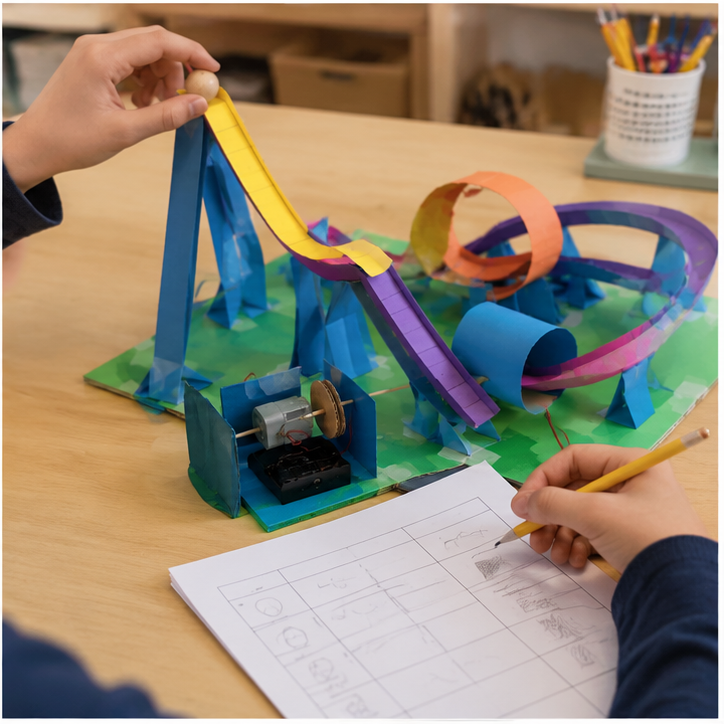

Students testing and recording results for Paper Roller Coaster
03Student testing

Student quick guide

What are we doing?

1

Meet the challenge: Build a paper roller coaster that carries a marble from start to finish without being touched.

2

Sketch different ideas, choose materials, and build a first model.

3

Test it fairly: release the same marble from the same marked starting point for three trials. Improve one part and test again.

For teachers

Engineering standards

This shows how the lesson connects to the national NGSS engineering standards and what student work you can collect.

Assessed

3-5-ETS1-1

Teams define the user or purpose, success criteria, and limits before building.

What students show: Problem statement with measurable criteria and material constraints.
Practiced

3-5-ETS1-2

Students sketch and compare at least two solutions before choosing or combining features.

What students show: Two labeled ideas and an evidence-based design choice.
Assessed

3-5-ETS1-3

Teams use a repeatable low-tech test—release the same marble from the same marked starting point for three trials—then revise one feature.

What students show: Test notes, before-and-after design, and explanation of improvement.

Materials

  • Cardstock and recycled paper strips
  • Paper cups or small boxes for supports
  • One classroom marble or wooden bead per test lane
  • Rulers, pencils, markers, and planning paper
  • Masking tape, glue dots, paper fasteners, clips, and rubber bands
  • Scissors and other teacher-approved hand tools
  • Reused and student-proposed materials approved before use

Teacher preparation

  1. Set out a broad materials buffet instead of identical kits.
  2. Build one small test rig, not a finished example students may copy.
  3. Mark size, time, and material limits visibly.
  4. Prepare a team planning page and shared test-data table.
  5. Create a safe holding area for drying or unfinished builds.

Step by step

How to teach it

Day 1 · 0–20

Explore the challenge

  1. Introduce the mission: Build a paper roller coaster that carries a marble from start to finish without being touched.
  2. Identify the user or audience and what success should look like.
  3. Explore how sample materials bend, fold, join, compress, slide, or balance.
Day 1 · 20–60

Imagine and prototype

  1. Each student sketches a different possibility.
  2. Teams compare ideas against criteria and constraints.
  3. Build a quick model using only part of the material budget.
Day 2 · 0–35

Build and test

  1. Complete the first working version.
  2. Use the same procedure each time: release the same marble from the same marked starting point for three trials.
  3. Record what worked, what failed, and where it happened.
Day 2 · 35–60

Improve with evidence

  1. Change one important feature rather than rebuilding randomly.
  2. Repeat the same test and compare results.
  3. Add color, surface, form, or story details that strengthen the purpose.
Optional Day 3

Gallery and challenge round

  1. Display designs with a one-sentence mission and test result.
  2. Let visitors try the project using the same rules.
  3. Teams explain one tradeoff and one idea they would try next.

Assessment

  • Problem statement includes a purpose, criteria, and constraints.
  • Sketches show meaningfully different ideas.
  • Material choices are explained using properties.
  • Test is repeatable and produces recorded evidence.
  • Revision responds to a specific result or failure point.

Supports & extensions

  • Offer picture directions and sample joining techniques.
  • Provide pre-cut pieces, adaptive scissors, or larger materials.
  • Allow students to explain through drawing, speaking, or demonstration.
  • Assign flexible roles: designer, builder, tester, recorder, and artist.
  • Extension: reduce material use while maintaining performance.

Safety & responsible use

  • Use only clean, teacher-approved reused materials.
  • Carry scissors and tools safely; cut away from hands and bodies.
  • Cover sharp cardboard corners, wire ends, skewers, or fasteners.
  • Use a defined test zone and keep faces away from moving or falling parts.
  • Teacher handles hot glue, craft knives, and any tool not approved for students.

No-machine alternative

The entire project is already designed for common classroom materials. Substitute paper folds, tabs, slots, string, tape, or found objects while keeping the same criteria and fair-test cycle.

Printable student design brief

The challenge

Build a paper roller coaster that carries a marble from start to finish without being touched.

Success criteria

  • Marble reaches the finish
  • Track stands on its own
  • Ride includes an intentional visual theme

Constraints

  • Fits on one desk or assigned base
  • Uses paper and tape as main materials
  • Marble is released, not pushed

Engineer’s notes

Our design should…
We chose this material because…
Our first test showed…
The failure point was…
We changed… because…
Next time we would…
