Sound-to-Color Art Wall

For teachers

Engineering standards

This shows how the lesson connects to the national NGSS engineering standards and what student work you can collect.

Assessed

3-5-ETS1-1

Teams define who needs the sound-to-color art wall and set measurable performance, safety, material, and time limits.

What students show: User-centered problem statement with criteria and constraints.

Practiced

3-5-ETS1-2

Teams compare at least two circuit, code, or enclosure ideas against the success criteria.

What students show: Labeled system diagrams and a recorded design choice.

Assessed

3-5-ETS1-3

Teams run a repeatable test—give visitors the same three interaction prompts and record whether the artistic response feels clear and engaging—then change one variable and retest.

What students show: Test table, code or build revision, and evidence-based explanation.

Materials

Cardboard, paper, craft sticks, tape, reusable building pieces, and student-proposed materials
Project platform: Paint/collage + Scratch or Makey Makey + vinyl cutter
Breadboard, paper-circuit supplies, or low-voltage power when needed
sound level, rhythm taps, touch pads, or buttons input component or student-designed substitute
screen color, LEDs, moving shapes, or revealed artwork output component or student-designed substitute
LEDs, resistors, jumper wires, copper tape, switches, and clips as needed
Vinyl cutting materials for an optional case, sign, mount, or model
Computer with approved coding or simulation tools when needed
Planning sheet, ruler, and test-data table

Teacher preparation

Build and test one possible reference solution without making it the required design.
Prepare a basic-materials table plus optional electronics and fabrication stations.
If coding is used, prepare a starter option for events, variables, timing, and student-created color rules; students may propose another workable control method.
Prepare optional fabrication templates and a file rule beginning G5_22.
Mark adult approval points before power-on and machine fabrication.

Step by step

How to teach it

Day 1 · 0–20

Meet the user and define success

Introduce the application: Help visitors experience a piece of music, rhythm, or spoken pattern through color and interaction.
Identify the user, need, criteria, and constraints.
Draw a system map with input → code → output.

Day 1 · 20–60

Build a first solution

Choose basic, electronic, and fabricated materials based on the team's idea.
Build with power disconnected whenever electronics are used.
Complete an adult check, then troubleshoot one connection or physical feature at a time.

Day 2 · 0–30

Create the behavior

Create the first working control using events, variables, timing, and student-created color rules.
Predict what one rule, connection, or code change will do before testing it.
Make the system understandable with labels, diagrams, comments, or coding blocks.

Day 2 · 30–60

Test and improve

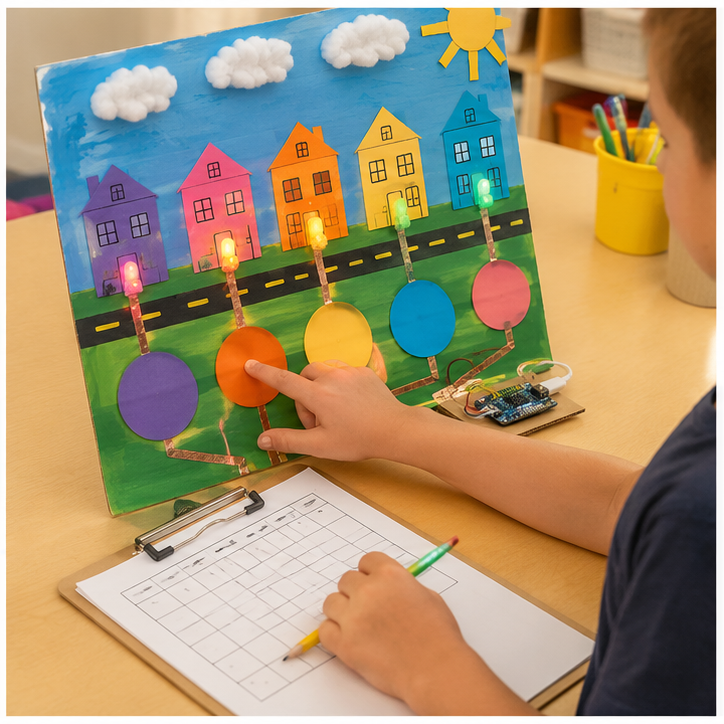

Use the same procedure each time: give visitors the same three interaction prompts and record whether the artistic response feels clear and engaging.
Record at least three results.
Change one code, circuit, or physical-design variable and retest.

Day 3

Fabricate and present

Design a vinyl cutting part that protects, mounts, or explains the electronics.
Adult reviews and operates fabrication equipment where required.
Connect the finished system and demonstrate how the evidence improved it.

Assessment

Problem statement names a real user and measurable need.
Circuit matches the team diagram and uses components safely.
Program connects the intended input to the intended output.
Test conditions remain consistent and include recorded evidence.
Revision addresses a documented failure or user need.

Supports & extensions

Use color-coded wires and a photograph of each breadboard step.
Provide block coding or partially completed code with one change at a time.
Assign roles: circuit builder, coder, tester, and recorder.
Let students explain findings orally or with labeled diagrams.
Extension: add a second sensor, output, data display, or operating mode.

Safety & responsible use

Use only teacher-approved low-voltage classroom electronics; never connect projects to wall current.
Disconnect power before changing wires or components.
Use the correct resistor with every standard LED and stop immediately if a part becomes hot.
An adult handles soldering, laser cutting, printer setup, blades, and final power approval.
Keep liquids away from boards unless a sealed, teacher-approved sensor activity specifically requires them.

No-machine alternative

Build with cardboard, paper mechanisms, paper circuits, or a free on-screen simulator. Students may invent another safe way to model the same function, then compare ideas, test one variable, collect evidence, and revise.

Printable student design brief

The challenge

Create a working sound-to-color art wall for this need: Help visitors experience a piece of music, rhythm, or spoken pattern through color and interaction.

Success criteria

Color and motion choices follow an explained artistic rule
Visitors can discover how to interact
Technology supports the artwork rather than overpowering it

Constraints

Uses original or licensed sound only
Records no visitor voices or personal data
A completely screen-based or low-tech version is acceptable

Engineer’s notes

Our user needs…

The input tells the system…

Our code decides…

The output responds by…

Our test data showed…

We improved… because…
